ZLINE Legacy 48 in. Dual-Fuel Range with 7-Burner Gas Cooktop and Electric Double Oven (RA48)
Features and Specs
ZLINE Legacy 48 in. Dual-Fuel Range with 7-Burner Gas Cooktop and Electric Double Oven (RA48)
The ZLINE Legacy RA48 delivers professional-style cooking capacity in a 48-inch freestanding dual-fuel range. Its gas cooktop provides responsive flame control across seven burners, including a dedicated fish burner, while two electric ovens provide the flexibility to bake, roast, broil, and prepare multiple dishes at different temperatures.
The main convection oven offers approximately 4.2 cu. ft. of space and the secondary oven adds approximately 1.8 cu. ft., for 6.0 cu. ft. combined capacity. Landscape oven windows, triple-layer glass, aluminum mesh sealing, dual lighting, and StayPut hinges support visibility, heat retention, and smoother door operation. The stainless-steel body and heavy-duty cast-iron grates are designed for daily kitchen use.
Seven hand-crafted Italian burners range from lower heat for simmering to 18,000 BTU for high-heat cooking. An LP conversion kit is included for qualified professional conversion where permitted. This range requires a dedicated 240 V circuit and professional installation. Verify gas configuration, ventilation, anti-tip protection, clearances, and local code requirements before installation.
Features
- ZLINE Legacy 48-inch freestanding dual-fuel range
- Model / MPN: RA48
- Stainless-steel finish
- Seven Italian-crafted gas burners, including a fish burner
- Two electric convection ovens with 6.0 cu. ft. combined capacity
- Main oven approximately 4.2 cu. ft.; secondary oven approximately 1.8 cu. ft.
- Burner output from 4,500 to 18,000 BTU
- 85,500 BTU total cooktop output
- Landscape oven windows and dual halogen lighting
- Triple-layer glass and aluminum mesh oven seals

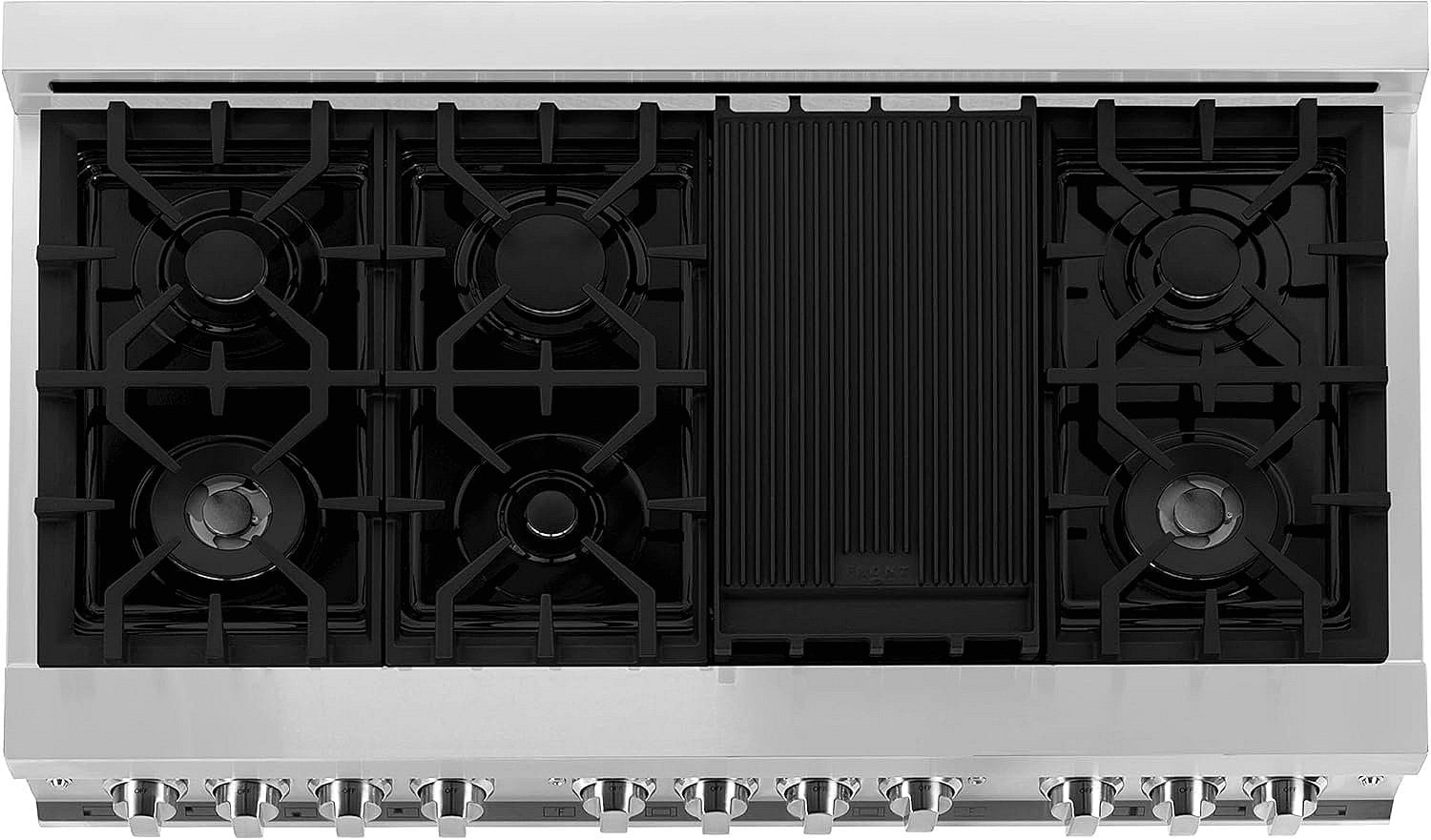

- Cast-iron grates and porcelain cooktop
- StayPut oven-door hinges
- LP conversion kit included; professional conversion required
- Limited lifetime burner warranty and one-year parts-and-service warranty; terms apply
Specifications
| Specification | Details |
|---|---|
| Brand | ZLINE |
| Series | Legacy |
| Model / MPN | RA48 |
| Product type | 48-inch freestanding dual-fuel range |
| Finish | Stainless steel |
| Cooktop fuel | Gas |
| Oven fuel | Electric convection |
| Burners | 7, including dedicated fish burner |
| Burner output | 4,500 / 10,000 / 12,500 / 18,000 BTU configurations |
| Total cooktop output | 85,500 BTU |
| Combined oven capacity | 6.0 cu. ft. (approximately 4.2 + 1.8) |
| Main oven | Approximately 4.2 cu. ft. convection electric |
| Secondary oven | Approximately 1.8 cu. ft. bake and broil |

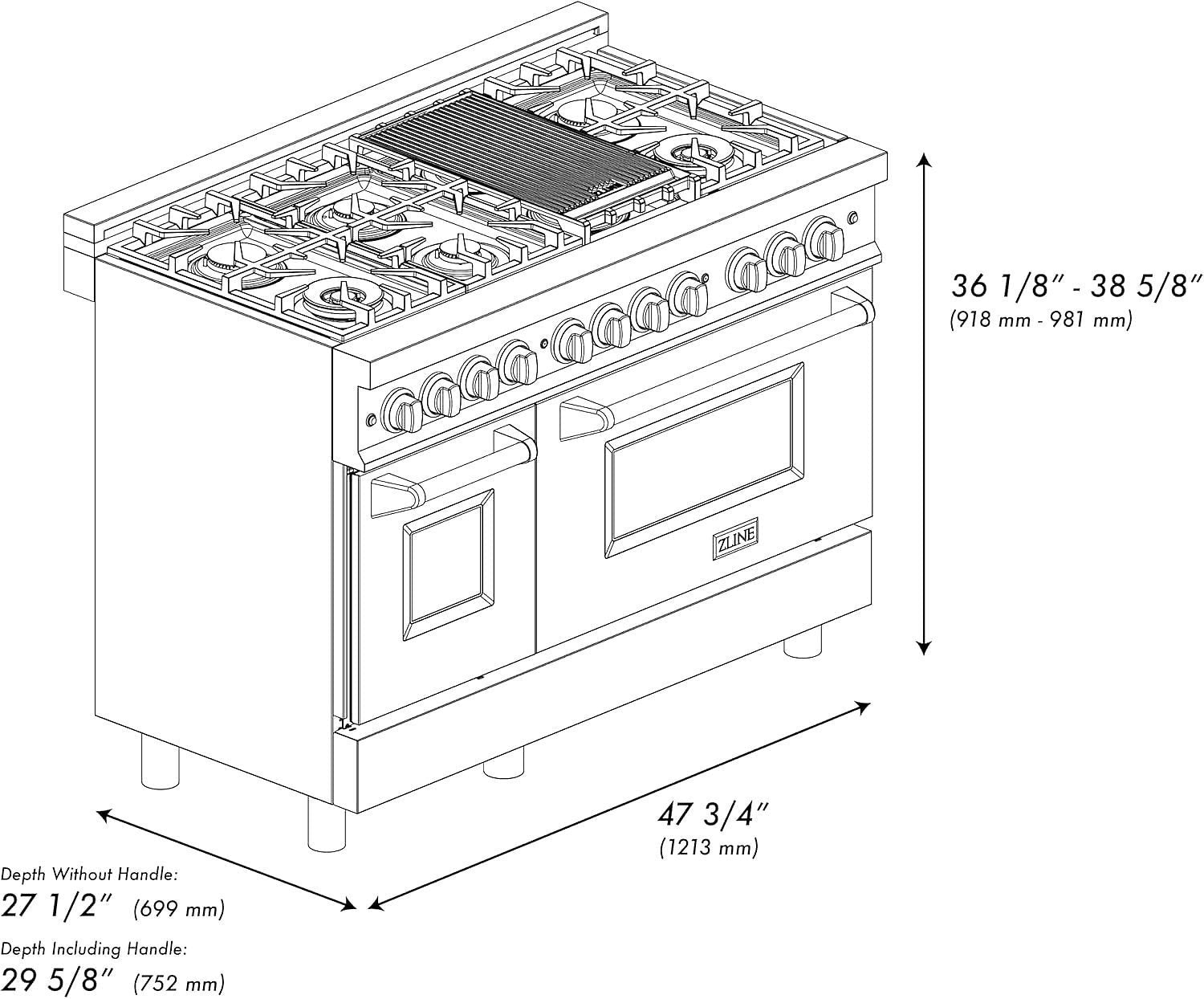

| Overall dimensions | 47.75 in. W x 27.5 in. D x 36.125 in. H |
| Oven interior reference | 24.875 in. W x 17.75 in. D x 16 in. H |
| Depth with door open 90 degrees | 41.8 in. |
| Electrical rating | 240 V, 60 Hz, 40 A |
| Convection | Yes |
| Product weight | 270 lb. |
| Installation | Professional installation recommended; dedicated circuit and ventilation required |
| Certifications | CSA Listed |
| Warranty | 1-year parts and service; limited lifetime burner warranty |
Verify the installation manual for final cutout, gas, electrical, anti-tip, ventilation, and clearance requirements. Specifications are for model RA48 and may vary by production revision.
