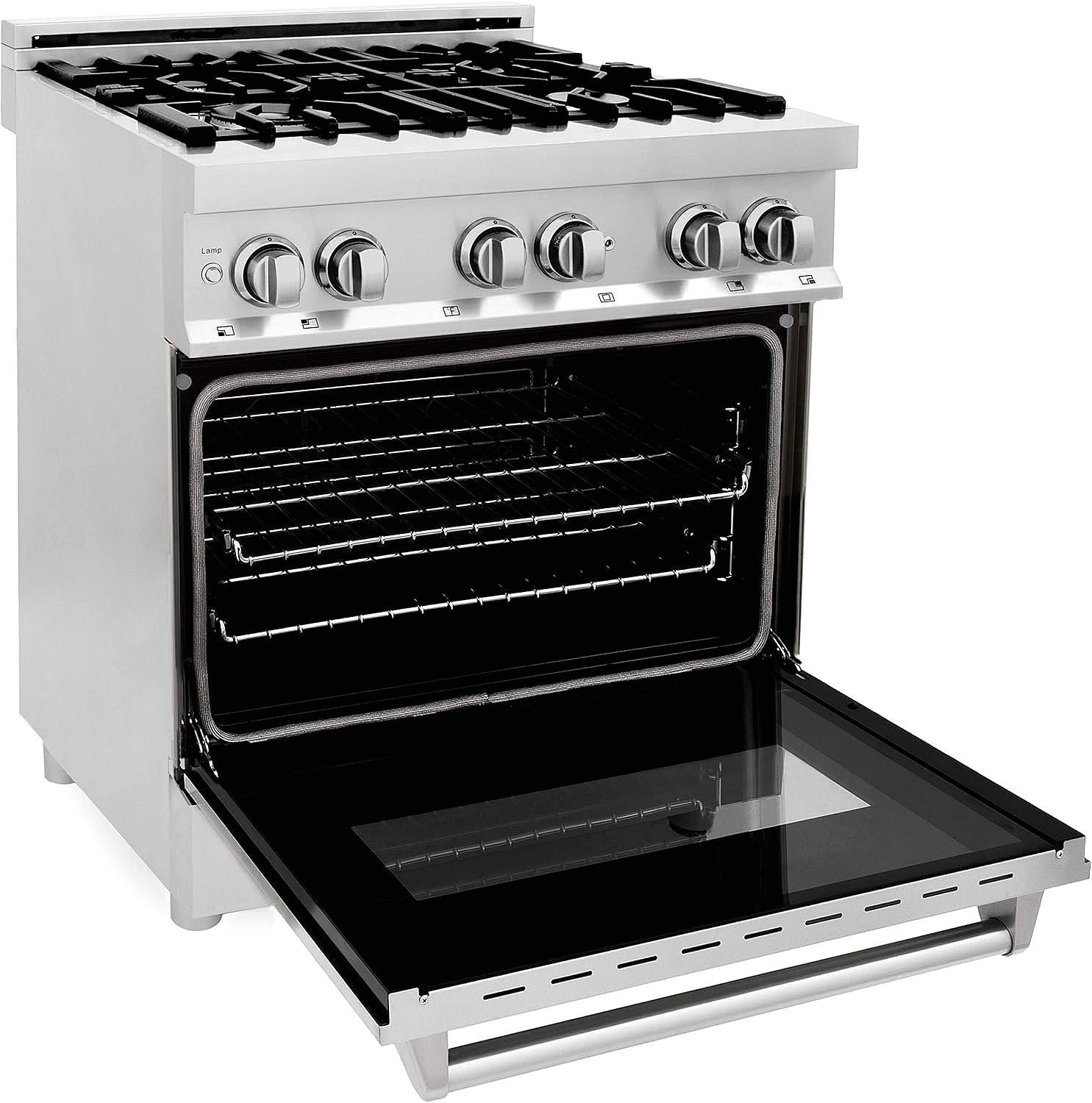

ZLINE Legacy 30 in. Dual-Fuel Range with Gas Cooktop and Electric Convection Oven (RA30)
Features and Specs
ZLINE Legacy 30 in. Dual-Fuel Range with Gas Cooktop and Electric Convection Oven (RA30)

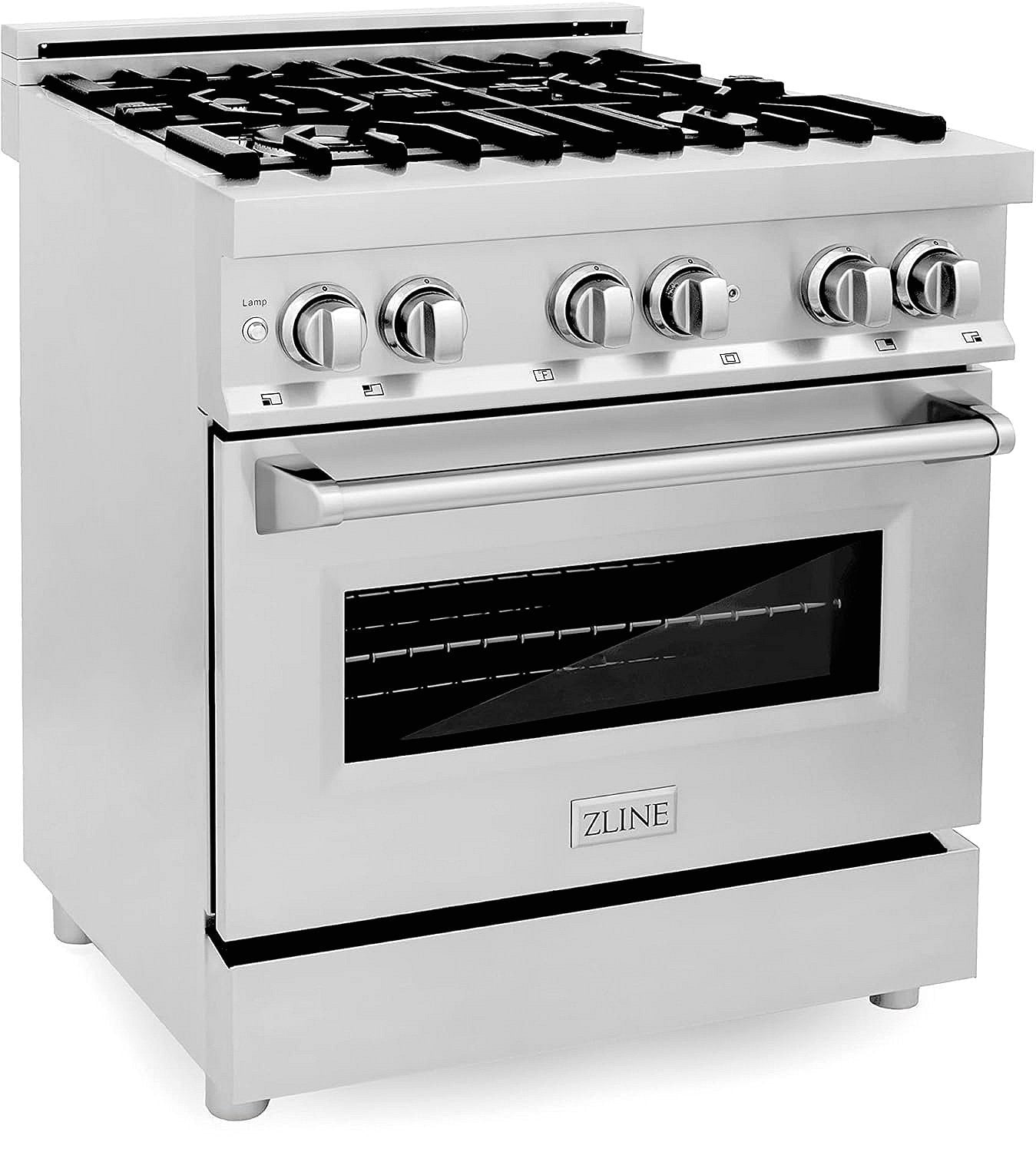

The ZLINE Legacy RA30 combines a four-burner gas cooktop with a 4.0 cu. ft. electric convection oven in a compact 30-inch freestanding range. Gas burners provide responsive flame control for simmering, sauteing, boiling, and searing, while the electric convection oven circulates heat for consistent baking, roasting, and broiling.
The stainless-steel range includes a porcelain cooktop, electronic spark ignition, Landscape oven window, triple-layer glass, aluminum mesh sealing, dual halogen lighting, and three sturdy oven racks. Its adjustable legs allow a finished installation height from 36 to 38.5 inches, making it easier to align with surrounding countertops.
An LP conversion kit is included for qualified professional conversion where permitted. Professional installation is recommended; confirm gas configuration, dedicated electrical circuit, ventilation, anti-tip protection, clearances, and local code requirements before installation.
Features
- ZLINE Legacy 30-inch freestanding dual-fuel range
- Model / MPN: RA30
- Stainless-steel finish

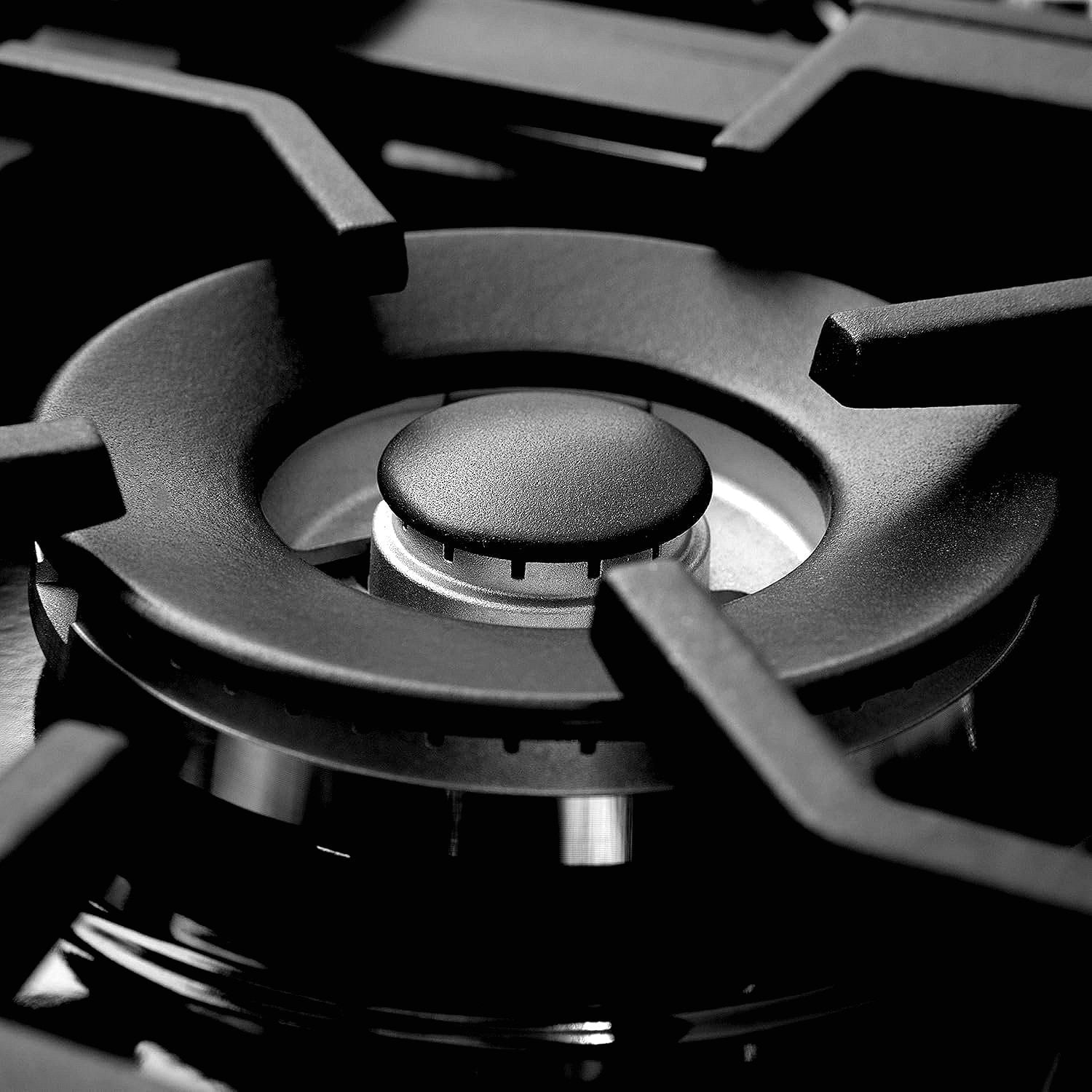

- Four Italian-crafted gas burners

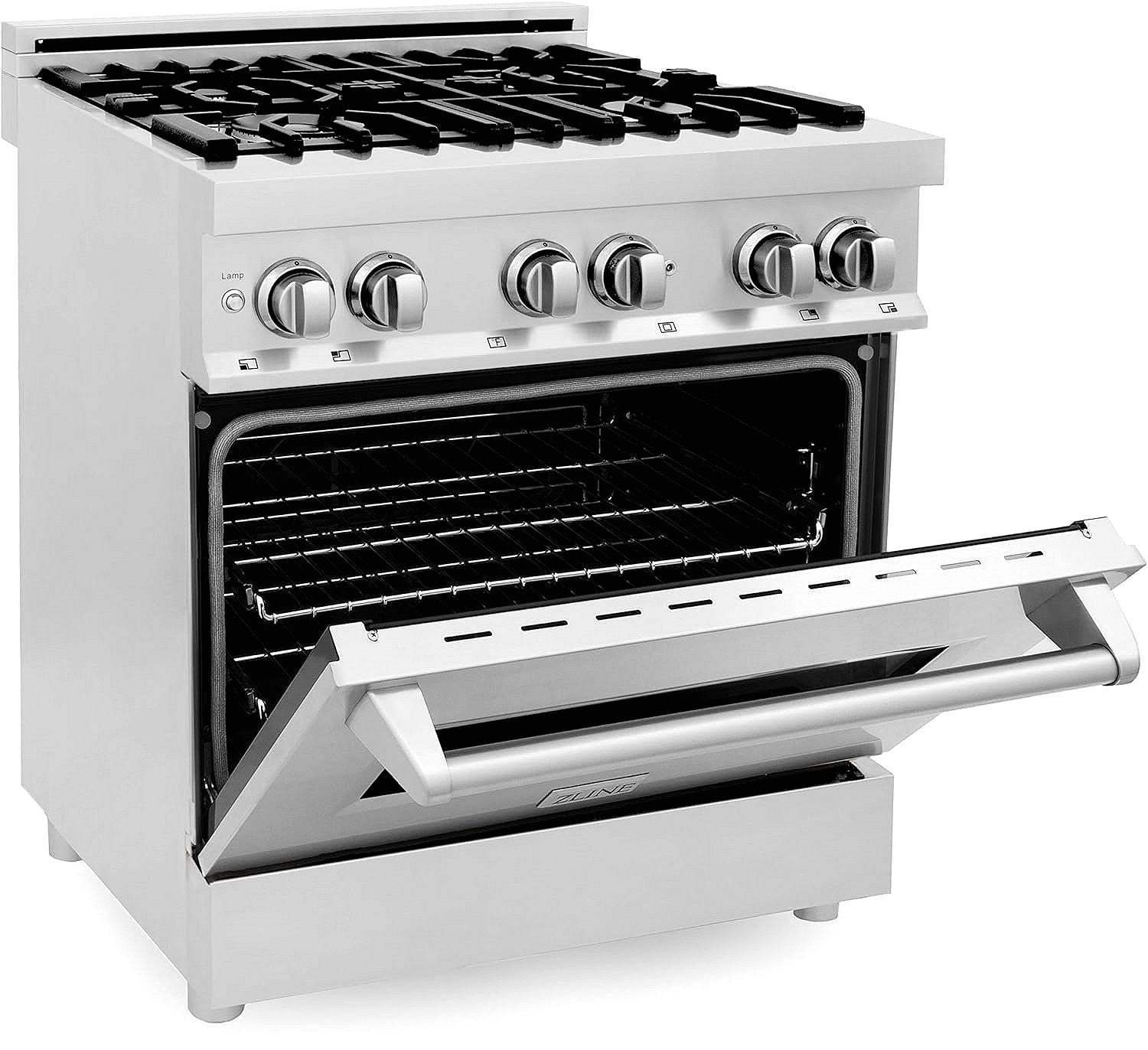

- 4.0 cu. ft. electric convection oven
- Burner output from 4,500 to 18,000 BTU
- 45,000 BTU total cooktop output
- Landscape oven window and dual halogen lighting
- Triple-layer glass and aluminum mesh oven seal

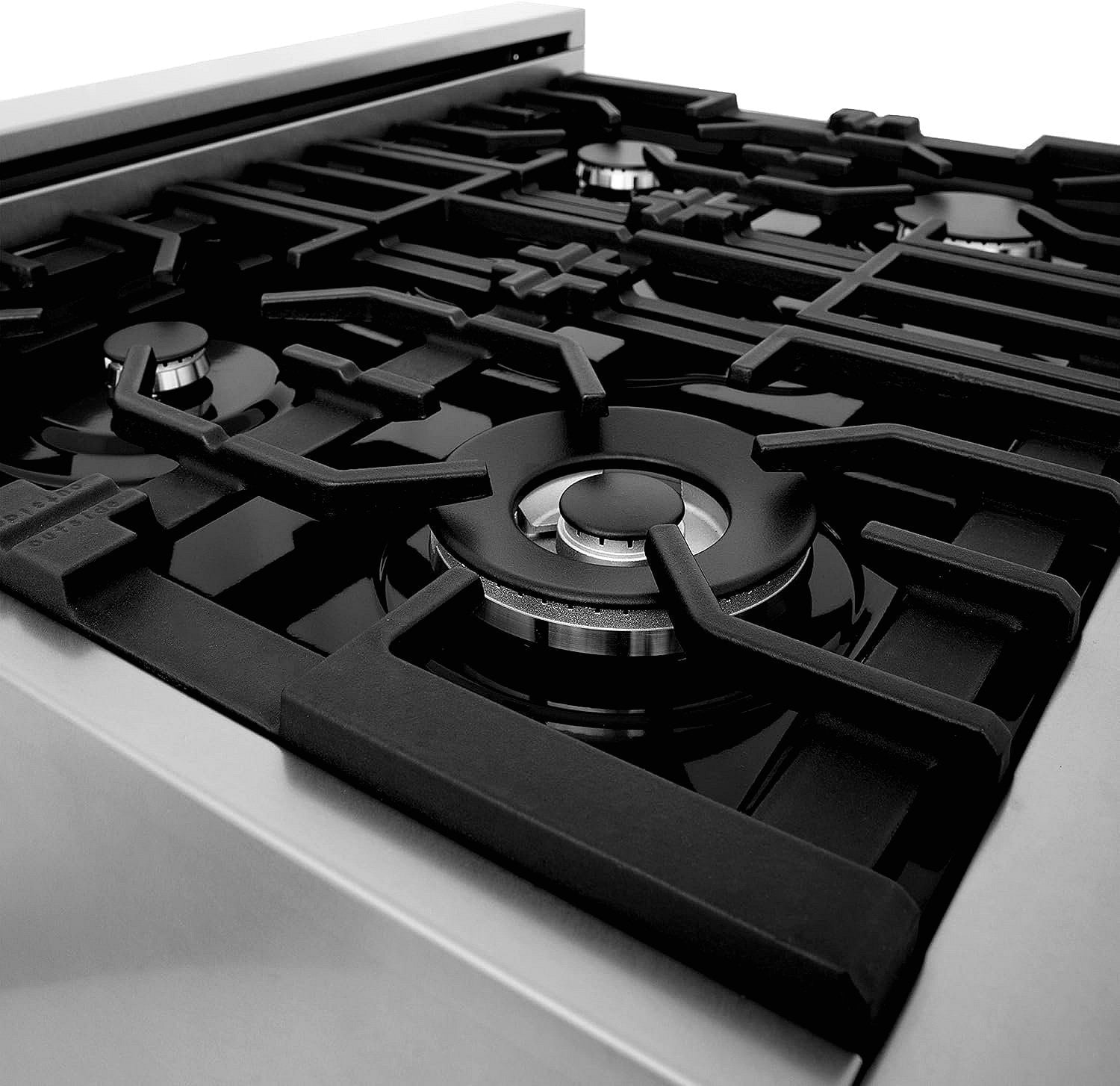

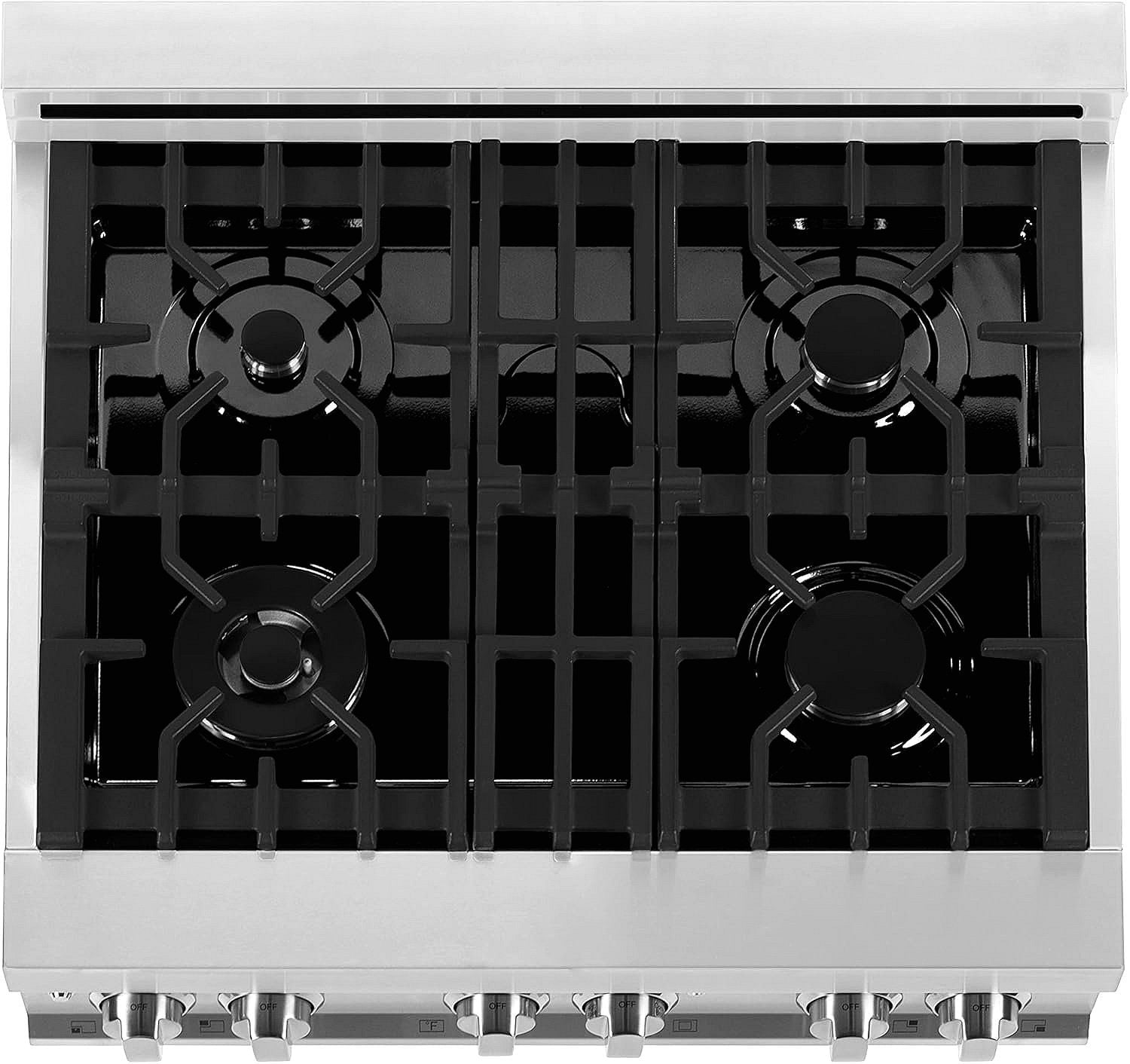

- Porcelain cooktop with electronic spark ignition
- Three oven racks
- Adjustable range height from 36 to 38.5 inches
- LP conversion kit included; professional conversion required
- Limited lifetime burner warranty and one-year parts-and-service warranty; terms apply
Specifications
| Specification | Details |
|---|---|
| Brand | ZLINE |
| Series | Legacy |
| Model / MPN | RA30 |
| Product type | 30-inch freestanding dual-fuel range |
| Finish | Stainless steel |
| Cooktop fuel | Gas |
| Oven fuel | Electric convection |
| Burners | 4 |
| Burner output | 4,500 / 10,000 / 12,500 / 18,000 BTU configurations |
| Total cooktop output | 45,000 BTU |
| Oven capacity | 4.0 cu. ft. |
| Oven interior | 24.875 in. W x 17.75 in. D x 16 in. H |

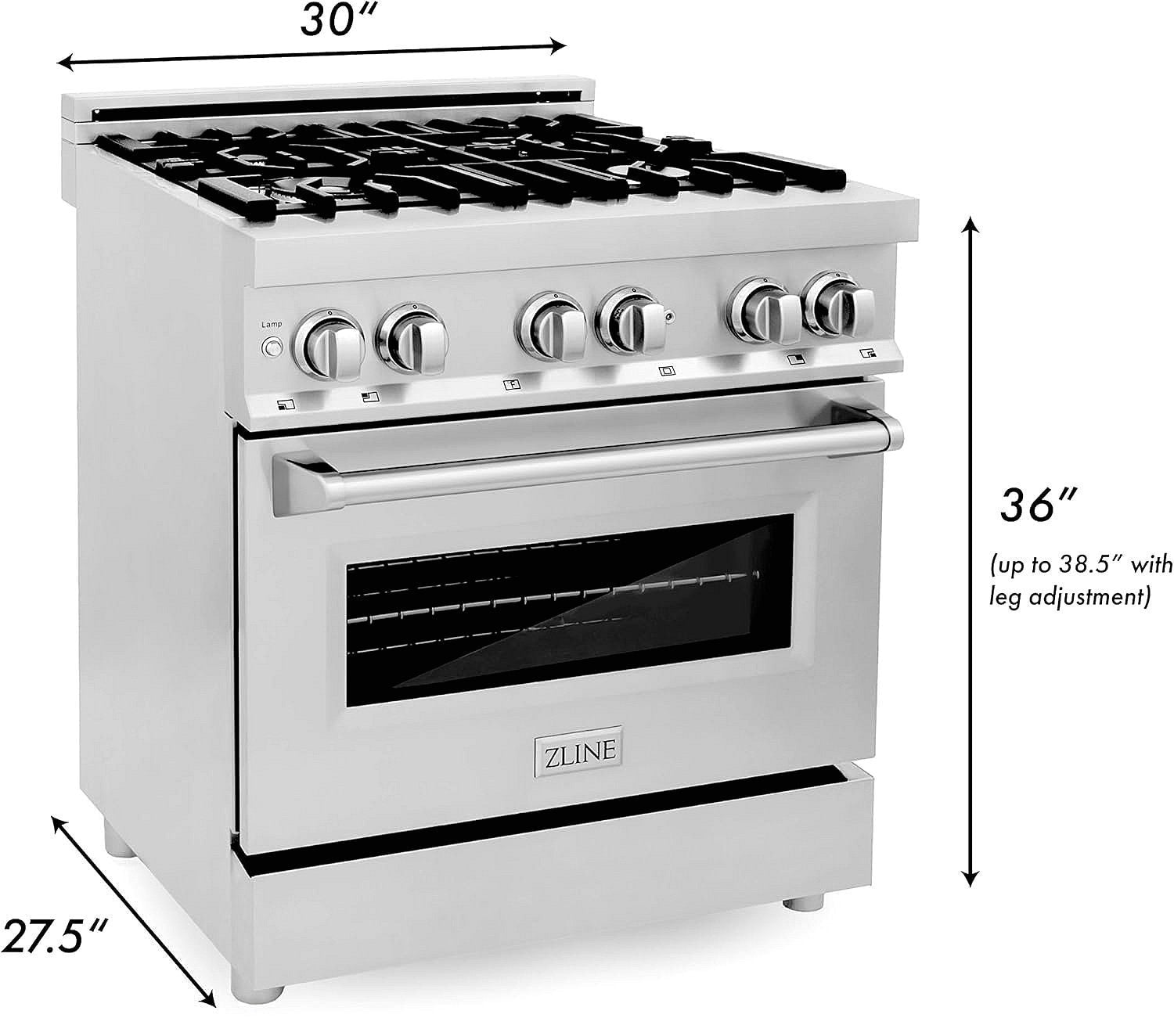

| Overall dimensions | 29.75 in. W x 27.5 in. D x 36.125 in. H |
| Adjustable height | 36 to 38.5 in. |
| Depth with door open 90 degrees | 41.8 in. |
| Electrical rating | 240 V, 60 Hz, 30 A |
| Convection | Yes |
| Product weight | 230 lb. |
| Installation | Professional installation recommended; dedicated circuit and ventilation required |
| Certifications | CSA Listed |
| Warranty | 1-year parts and service; limited lifetime burner warranty |
Verify the installation manual for final cutout, gas, electrical, anti-tip, ventilation, and clearance requirements. Specifications are for model RA30 and may vary by production revision.
