ZLINE Autograph Edition 36 in. Dual-Fuel Range with Gold Accents (RAZ-36-G)
Features and Specs

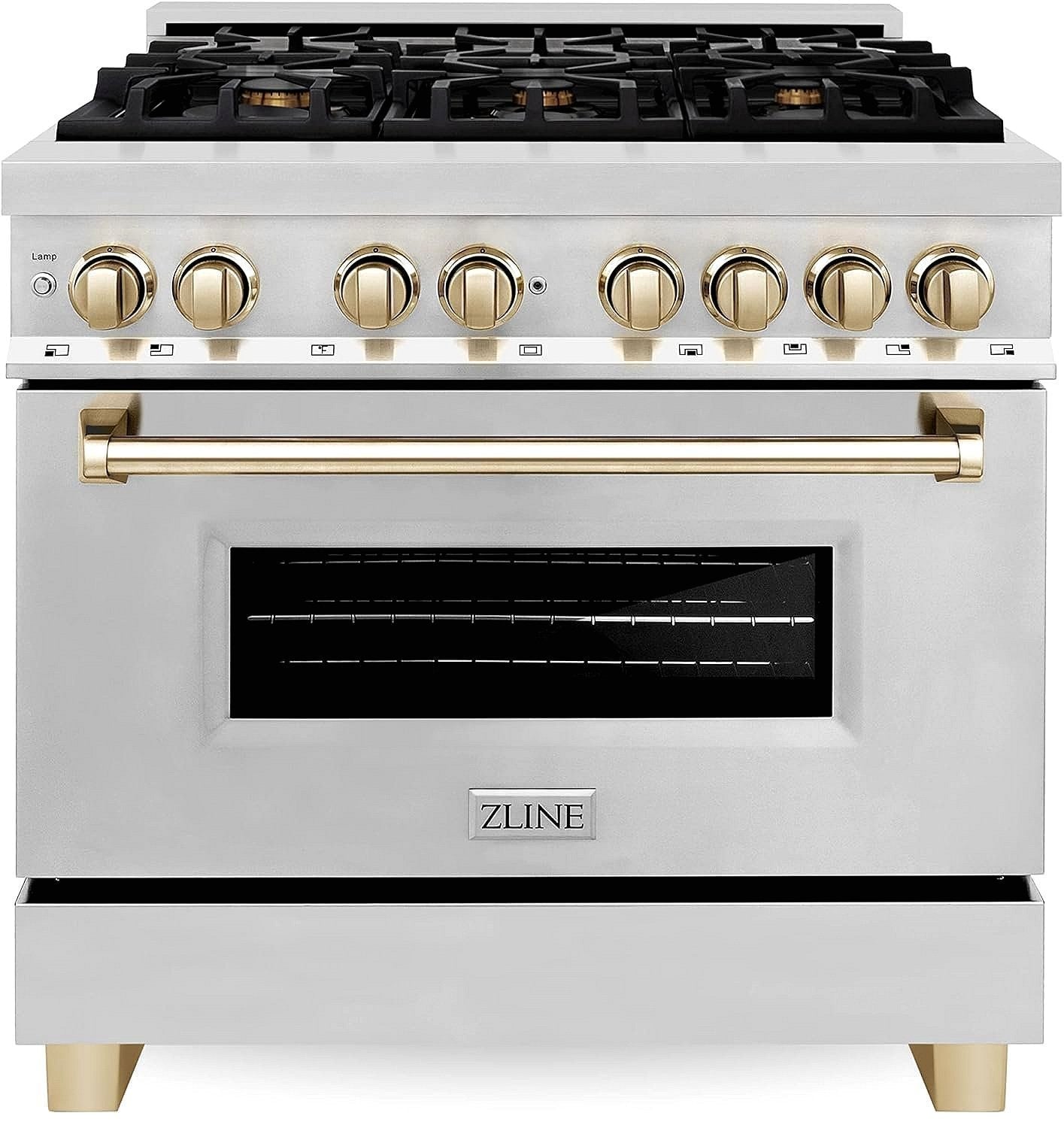

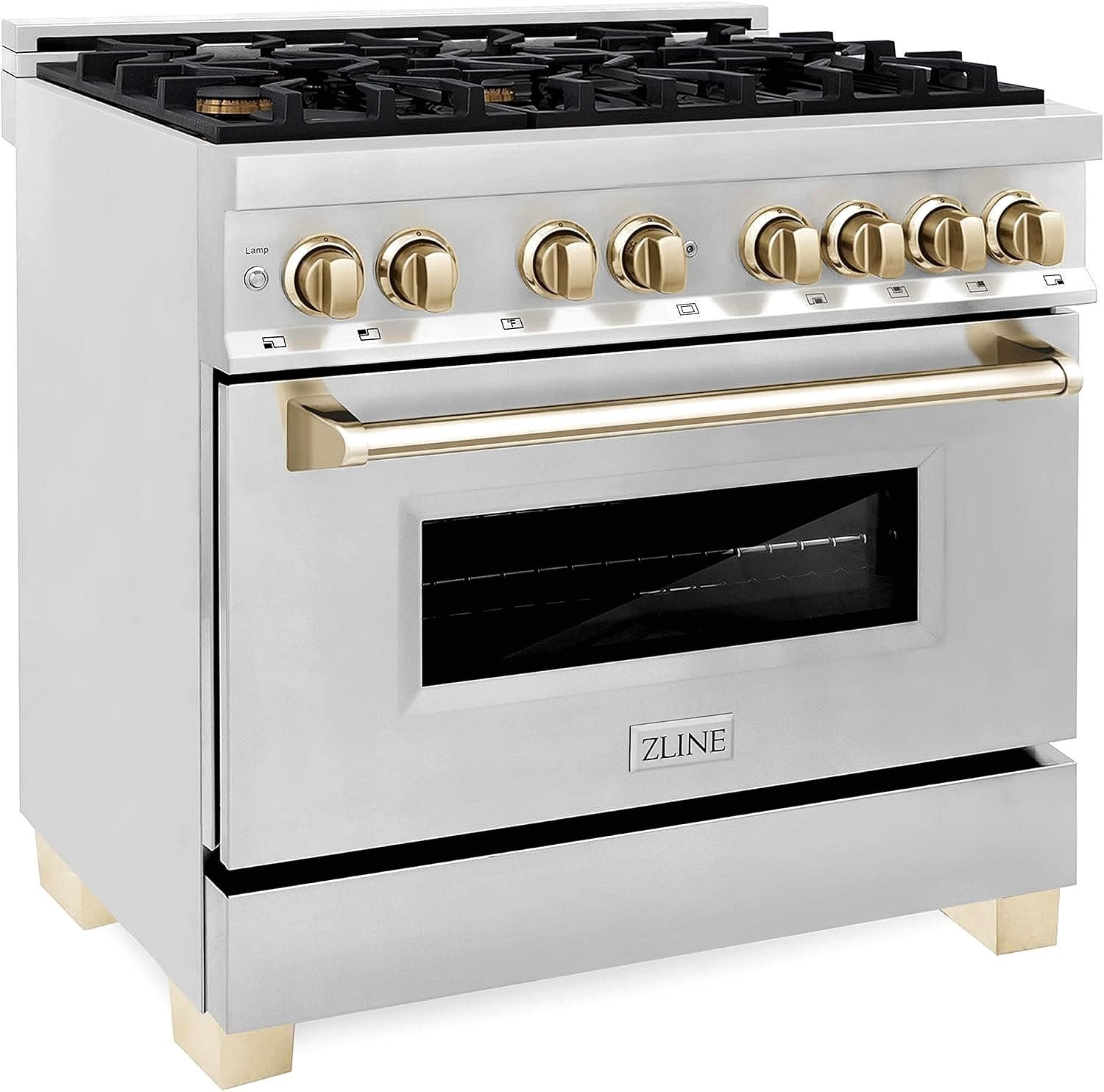

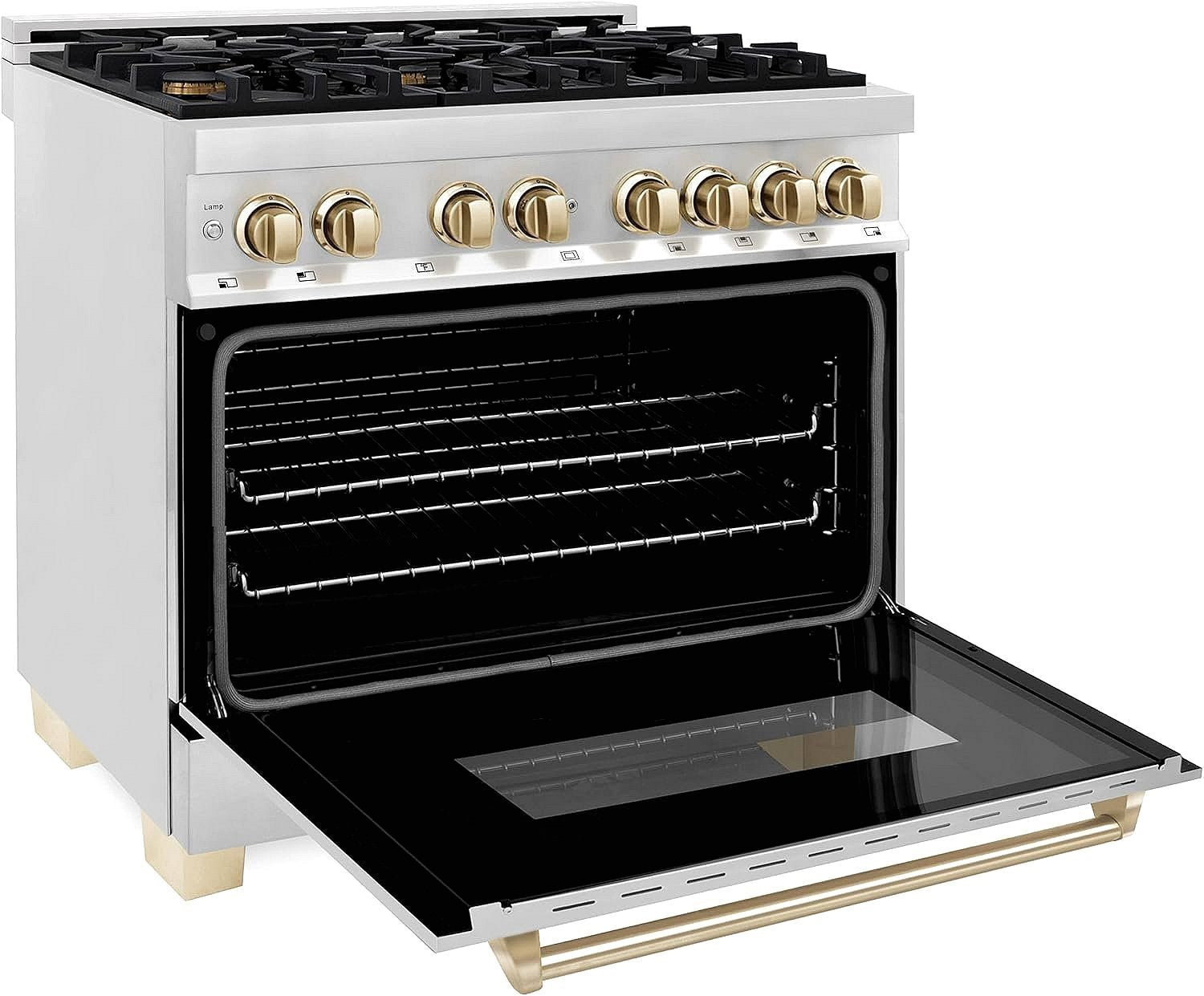

ZLINE Autograph Edition 36 in. Dual-Fuel Range with Gold Accents (RAZ-36-G)

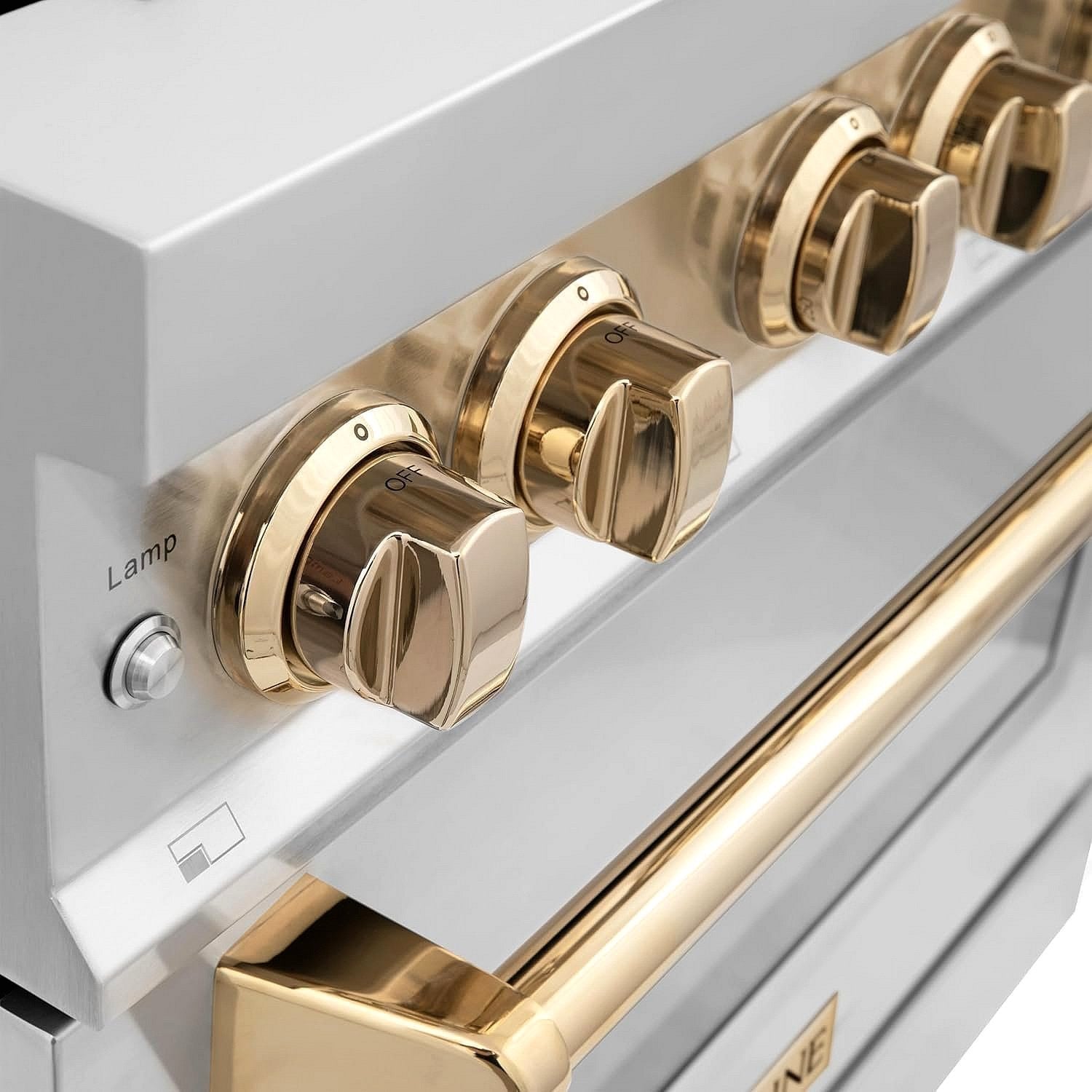

The ZLINE Autograph Edition RAZ-36-G combines a six-burner gas cooktop with a spacious electric convection oven for professional-style cooking at home. Its high-grade stainless-steel body, polished gold knobs and handle, cast-iron grates, and Landscape oven window make it a statement appliance while the dual-fuel design gives cooks responsive flame control and even electric-oven heating.

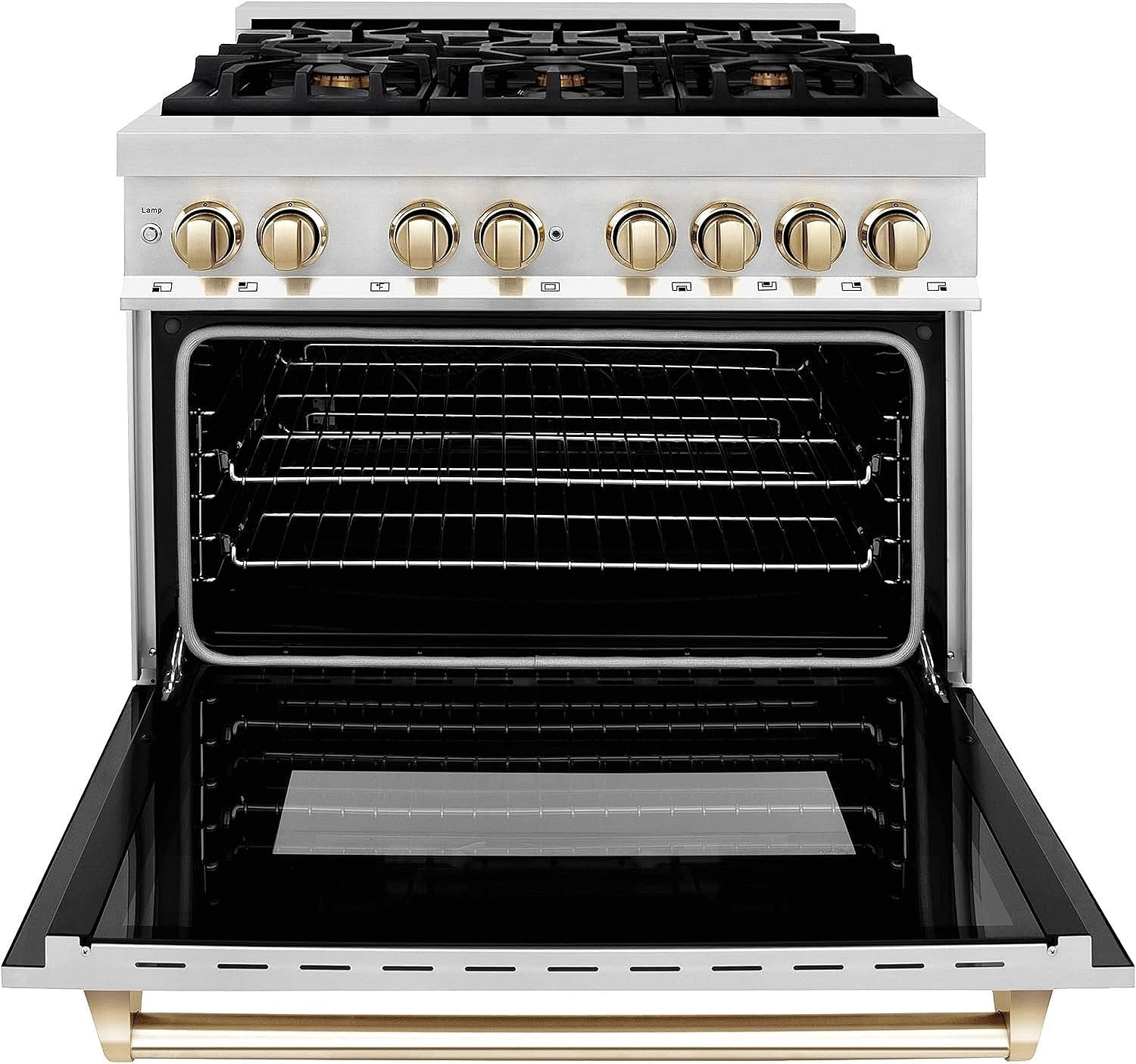

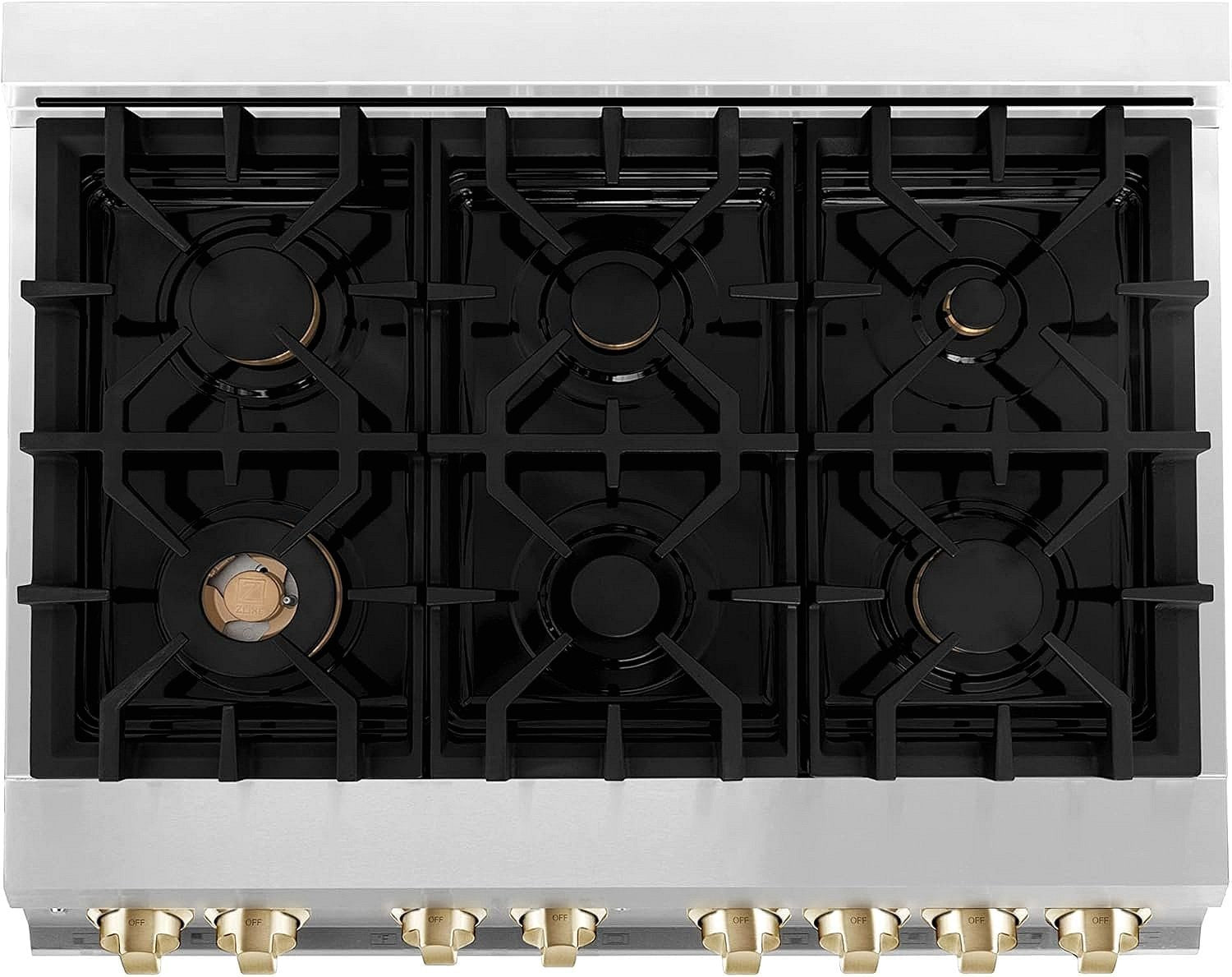

Six hand-cast Italian brass burners provide versatile heat, including a powerful 18,000 BTU front burner and a 4,500 BTU burner for lower-heat cooking. The 4.6 cu. ft. electric convection oven fits pans up to 27 inches wide and uses circulated heat for more consistent baking, roasting, and broiling. Triple-layer glass, an aluminum mesh seal, dual halogen lighting, and two smooth-glide ball-bearing racks support everyday usability.
The range has adjustable legs for an installation height from 36 to 38.5 inches and includes an LP conversion kit for qualified professional conversion where permitted. It requires a dedicated 240 V, 60 Hz, 15 A circuit with a NEMA 14-50 four-wire plug system. Professional installation is recommended; verify gas type, ventilation, anti-tip protection, clearances, and local code requirements before installation.
Features
- ZLINE Autograph Edition 36-inch freestanding dual-fuel range
- Model / MPN: RAZ-36-G
- Stainless-steel finish with polished gold accents
- Six hand-cast Italian brass gas burners
- 4.6 cu. ft. electric convection oven
- Burner output from 4,500 to 18,000 BTU
- 67,500 BTU total cooktop output
- Landscape oven window with dual halogen lights
- Triple-layer glass and aluminum mesh oven seal
- Cast-iron grates and porcelain cooktop
- Two smooth-glide ball-bearing oven racks
- Adjustable range height from 36 to 38.5 inches
- LP conversion kit included; professional conversion required
- Limited lifetime burner warranty and one-year parts-and-service warranty; terms apply
Specifications
| Specification | Details |
|---|---|
| Brand | ZLINE |
| Series | Autograph Edition / Legacy |
| Model / MPN | RAZ-36-G |
| Product type | 36-inch freestanding dual-fuel range |
| Finish | Stainless steel with polished gold hardware |
| Cooktop fuel | Gas |
| Oven fuel | Electric convection |
| Burners | 6 hand-cast Italian brass burners |
| Burner output | 4,500 / 10,000 / 12,500 / 18,000 BTU configurations |
| Total cooktop output | 67,500 BTU |
| Oven capacity | 4.6 cu. ft. |
| Oven interior | 24.875 in. W x 17.75 in. D x 16 in. H |

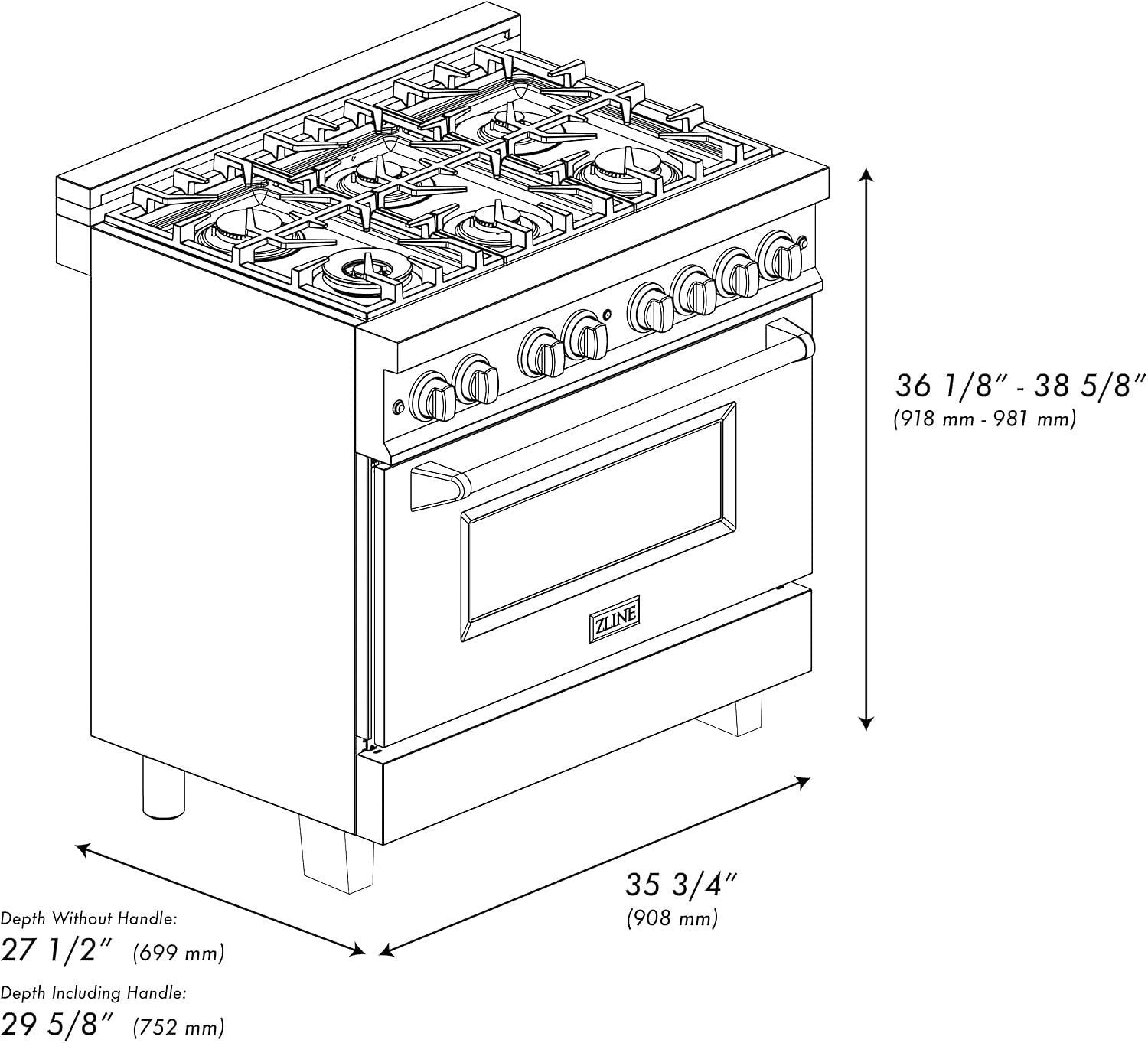

| Overall dimensions | 35.75 in. W x 27.5 in. D x 36.125 in. H |
| Adjustable height | 36 to 38.5 in. |
| Depth with door open 90 degrees | 41.8 in. |
| Electrical rating | 240 V, 60 Hz, 15 A; NEMA 14-50 four-wire plug |
| Convection | Yes |
| Product weight | 253 lb. |
| Installation | Professional installation recommended; dedicated circuit and ventilation required |
| Certifications | CSA Listed |
| Warranty | 1-year parts and service; limited lifetime burner warranty |
Verify the installation manual for final cutout, gas, electrical, anti-tip, ventilation, and clearance requirements. Specifications are for model RAZ-36-G and may vary by production revision.
